Non-volatile control of magnetic anisotropy through change of electric polarization

12.11.2019

Researchers from Kanazawa University use electrical polarization to control magnetic properties aiming for advanced memory applications

The ability to control the magnetic properties of a material using electricity is important for the development of computer technology, particularly nonvolatile memory, which is memory that requires no constant electrical supply to maintain a set state.

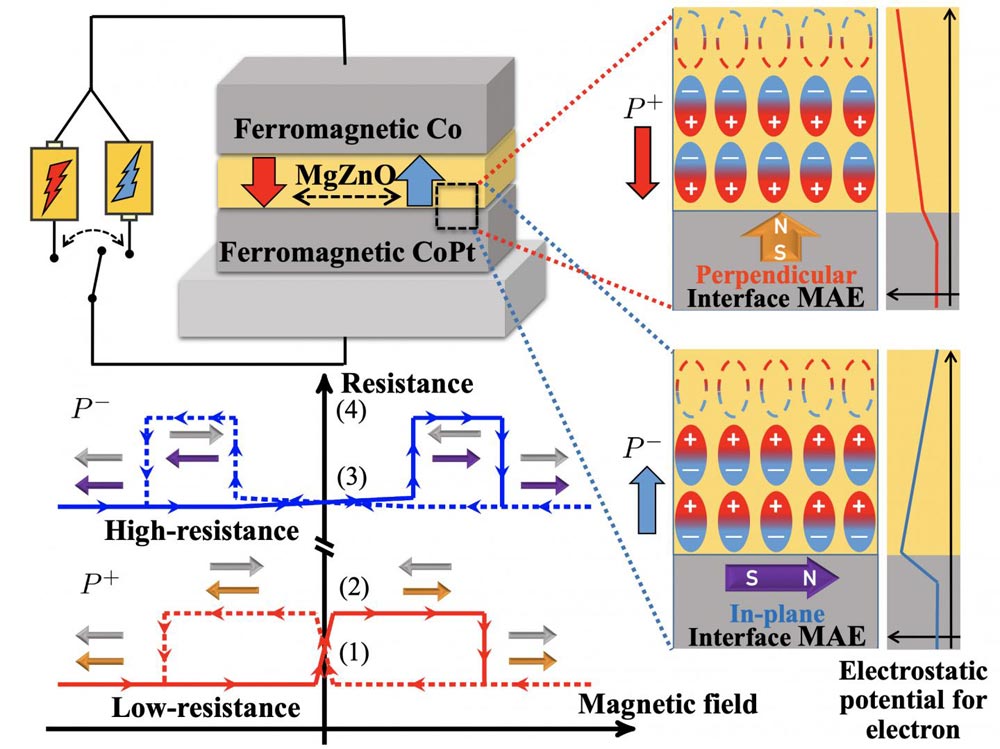

A schematic image of magnetic tunnel junction constructed of ferroelectric material sandwiched by magnetic metal layers. Interface of each electric polarization direction are shown enlarged in right-hand side. The diagram of electric resistance caused by electric polarization and magnetic directions are shown in bottom-left side.

Credit: Kanazawa University

That is, electrical control of the magnetic states of a material may allow us to realize the attractive energy-efficient concept of nonvolatile magnetic memory that is switched between different states using electricity.

Recently, Japanese researchers from Kanazawa University found that the magnetic properties of one metal layer could be controlled by applying electricity to an overlying metal oxide layer.

The research team investigated the change in the magnetic properties of a layer of cobalt-platinum alloy (CoPt) induced by the electrical polarization of an overlying zinc oxide (ZnO) layer.

Computational simulations showed that switching the electrical polarization of the ZnO layer had a large effect on the chemical potential at the interface between ZnO and CoPt, which in turn led to a considerable change in the magnetic behavior of the CoPt layer. The change of the magnetic behavior of the CoPt layer was nonvolatile; i.e., the layer remained in the set state until the electrical polarization of the ZnO layer was changed.

"The large effect of the electrical polarization of ZnO on the magnetic properties of CoPt could be explained by the polarization of ZnO providing control over the interactions of the atomic orbitals of CoPt," says author Masao Obata.

To confirm the promising results obtained from their simulations, the researchers fabricated a stacked structure called a tunnel junction containing Mg doped ZnO and CoPt layers. The magnetic properties and switching behavior of the tunnel junction were investigated.

The results revealed that the tunnel junction showed substantially different magnetic behavior depending on the electrical polarization state of the ZnO layer, providing qualitative agreement between the simulation results and theoretical findings.

"The ZnO/CoPt system demonstrates that it is possible to achieve nonvolatile electrical control of the magnetic properties of materials," explains co-author Tatsuki Oda. "Such a concept is important for the development of advanced energy-efficient nonvolatile magnetic memory."

The nonvolatile control of the magnetic behavior of CoPt by the electrical polarization of ZnO represents an attractive concept to realize new nonvolatile memory applications to further advance information processing.

Tomoya Sato | EurekAlert!
Further information:
https://doi.org/10.1103/PhysRevB.100.054423
http://dx.doi.org/10.1103/PhysRevB.100.054423
