Members of a research collaboration have succeeded in experimentally verifying the properties of crystals of chiral magnetic materials, which may lead to the development of new types of magnetic memories with unprecedented storage capacities. The collaboration "A Consortium to Exploit Spin Chirality in Advanced Materials" was established in 2015 between scientists in several countries including Japan, Russia, and the UK.
"It is a great success for our international consortium, as we achieved the result effectively by taking advantage of the organization that is composed of experts in various research fields," said Katsuya Inoue, the Japanese coordinator of the consortium and professor Hiroshima University's Graduate School of Science.

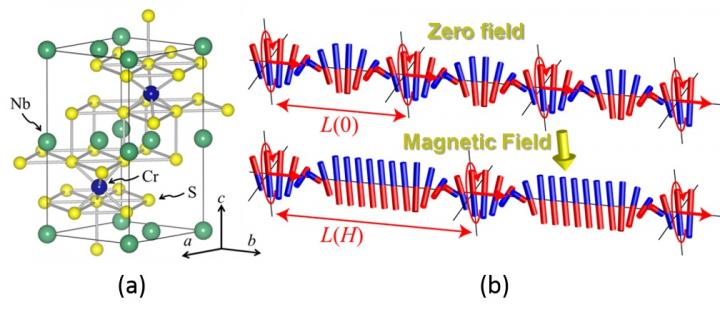

(a) This figure shows the crystal structure of a chiral crystal of CrNb3S6 (b) Magnetic twists formed in the chiral crystal are schematically illustrated by an array of bar magnets arranged in the form of a spiral. The period of the helix L(H) is controlled by changing the external magnetic field H.
Credit: Yoshihiko Togawa, Osaka Prefecture University
Magnetic materials with chiral crystalline structures, also known as chiral magnets (for example, CrNb3S6), show a unique magnetic twisting effect that is triggered by a weak external magnetic field. The material looks like it is composed of atomic-sized magnets arranged helically, as shown in the figure (b).
In December 2015, researchers experimentally showed that the winding number of the twists can be detected electrically, and controlled by changing the strength of the external magnetic field. They designed a tiny device about the size of a human cell from CrNb3S6, and observed that the electrical resistance takes a series of discrete values that changes stepwise with change in the external magnetic field strength.
It was also visually demonstrated by using electron microscopy that the change in the electrical resistance corresponds to the change in the twisting of the magnetic field in the material. Using the device, the researchers reported data of 20 discrete states and were successful in unambiguously detecting these states.
Conventional electronic devices used as components in current electronic appliances handle information as binary data represented by a combination of "0" and "1". In magnetic materials, these two states correspond to the orientations of the magnetic field, namely "up" and "down".
However, new devices made from chiral magnets handle information as combinations of multiple digits corresponding to the multiple twists formed in the chiral magnets.
Dr. Yoshihiko Togawa from Osaka Prefecture University, who is the leader of the research team, said, "For example, the capacity of a storage memory device composed of 10 such new element devices made from chiral magnets, each of which has 10 discrete states, will be 10,000,000,000, which is about 10 million times larger than that of a conventional magnetic storage memory with the same number of conventional element devices."
Further studies are ongoing with respect to both scientific and technological aspects of these findings that target future practical applications, such as multiple-valued magnetic memories, sensors or logic devices with high storage capacities owing to the unique characteristic features of this material.
Y. Togawa et al., Magnetic soliton confinement and discretization effects arising from macroscopic coherence in a chiral spin soliton lattice, Phys. Rev. B 92, 220412(R) (2014).
Authors and their affiliations:
Y. Togawa1,2,3,4, T. Koyama5, Y. Nishimori1, Y. Matsumoto1, S. McVitie3, D. McGrouther3, R. L. Stamps3, Y. Kousaka4,6,7, J. Akimitsu4,6,7, S. Nishihara4,7, K. Inoue4,7,8, I. G. Bostrem9, Vl. E. Sinitsyn9, A. S. Ovchinnikov9, and J. Kishine4,10 1Department of Physics and Electronics, Osaka Prefecture University, 1-2 Gakuencho, Sakai, Osaka 599-8570, Japan 2JST, PREST, 4-1-8 Honcho Kawaguchi, Saitama 333-0012, Japan 3School of Physics and Astronomy, University of Glasgow, Glasgow G12 8QQ, United Kingdom 4Centre for Chiral Science, Hiroshima University, Higashi-Hiroshima, Hiroshima 739-8526, Japan 5Department of Materials Science, Osaka Prefecture University, 1-1 Gakuencho, Sakai, Osaka 599-8531, Japan 6Department of Physics and Mathematics, Aoyama Gakuin University, Sagamihara, Kanagawa 252-5258, Japan 7Graduate School of Science, Hiroshima University, Higashi-Hiroshima, Hiroshima 739-8526, Japan 8IAMR, Facility of Science, Hiroshima University, Higashi-Hiroshima, Hiroshima 739-8530, Japan 9Institute of Natural Sciences, Ural Federal University, Ekaterinburg, 620083, Russia 10Division of Natural and Environmental Sciences, The Open University of Japan, Chiba, 261-8586, Japan
Norifumi Miyokawa | EurekAlert!
