Fast-as-lightning 3D microprinting with two lasers

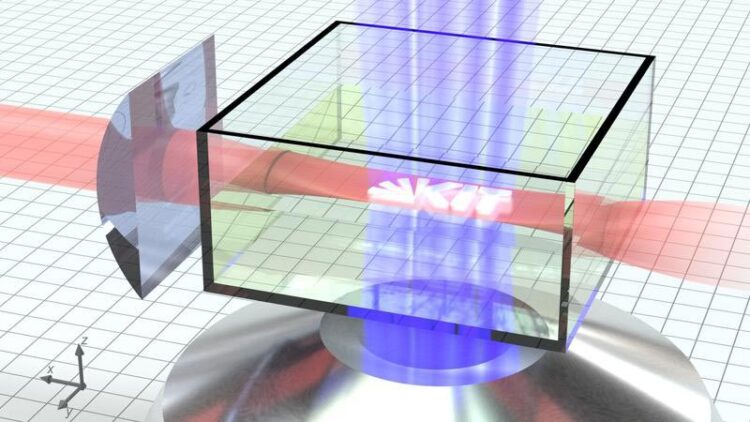

In light sheet 3D printing, red and blue laser light is used to print objects precisely and quickly on a micrometer scale (Photo: Vincent Hahn, KIT)

Joining forces:

Researchers from the Cluster of Excellence “3D matter made to order” print microstructures by crossing red and blue laser beams – publication in Nature Photonics.

Printing objects from plastic precisely, quickly, and inexpensively is the goal of many 3D printing processes. However, speed and high resolution remain a technological challenge. A research team from the Karlsruhe Institute of Technology (KIT), Heidelberg University, and the Queensland University of Technology (QUT) has come a long way toward achieving this goal. It developed a laser printing process that can print micrometer-sized parts in the blink of an eye. The international team published the work in Nature Photonics. (DOI: 10.1038/s41566-022-01081-0)

Stereolithography 3D printing is currently one of the most popular additive manufacturing processes for plastics, both for private and industrial applications. In stereolithography, the layers of a 3D object are projected one by one into a container filled with resin. The resin is cured by UV light. However, previous stereolithography methods are slow and have too low a resolution. Light-sheet 3D printing, which is used by the KIT researchers, is a fast and high-resolution alternative.

3D Printing with Two Colors in Two Stages

In light-sheet 3D printing, blue light is projected into a container filled with a liquid resin. The blue light pre-activates the resin. In a second stage, a red laser beam provides the additional energy needed to cure the resin. However, 3D printing can only print quickly resins that quickly return from their pre-activated state to their original state. Only then can the next layer be printed. Consequently, the return time dictates the waiting time between two successive layers and thus the printing speed. “For the resin we used, the return time was less than 100 microseconds, which allows for high printing speeds,” says first author Vincent Hahn from KIT’s Institute of Applied Physics (APH).

Micrometer-sized Structures in Just the Blink of an Eye

To take advantage of this new resin, the researchers built a special 3D printer. In this printer, blue laser diodes are used to project images into the liquid resin using a high-resolution display with a high frame rate. The red laser is formed into a thin “light sheet” beam and crosses the blue beam vertically in the resin. With this arrangement, the team was able to 3D print micrometer-sized parts in a few hundred milliseconds, i.e. in the blink of an eye. However, it should not stop there: “With more sensitive resins, we could even use LEDs instead of lasers in our 3D printer,” says Professor Martin Wegener of APH. “Ultimately, we want to print 3D structures that are centimeters in size, while maintaining micrometer resolution and high printing speeds.”

The publication was produced within the framework of the joint “3D Matter Made to Order” Cluster of Excellence of the KIT and Heidelberg University. Junior Professor Dr Eva Blasco, a group leader at the Institute of Organic Chemistry and the Institute for Molecular Systems Engineering and Advanced Materials, was involved on the part of Heidelberg University.

Original Publication:
V. Hahn, P. Rietz, F. Hermann, P. Müller, C. Barner-Kowollik, T. Schlöder, W. Wenzel, E. Blasco, and M. Wegener: Light-sheet three-dimensional microprinting via two-colour two-step absorption. Nature Photonics, 2022. DOI: 10.1038/s41566-022-01081-0

Cluster of Excellence “3D Matter Made to Order”

In the Cluster of Excellence “3D Matter Made to Order,” scientists from the Karlsruhe Institute of Technology (KIT) and Heidelberg University are conducting interdisciplinary research on innovative technologies and materials for digitally scalable additive manufacturing to improve the precision, speed, and performance of 3D printing. The goal of the work is to fully digitize 3D manufacturing and materials processing from the molecule to the microstructure. In addition to being funded as a Cluster of Excellence under the Excellence Strategy Competition of the German federal and state governments, “3D Matter Made to Order” is funded by the Carl Zeiss Foundation.

Read more on the Cluster of Excellence „3D Matter Made to Order“

Details on the KIT Center Materials in Technical and Life Sciences

Founded in 1386, Ruperto Carola is an internationally oriented research university whose subject spectrum includes the humanities, the social sciences, law, the natural, engineering and life sciences, and medicine. As one of the Universities of Excellence in Germany, Heidelberg University’s successes in the Excellence Competitions and its standing in international rankings confirm its leading role in the academic landscape. It is part of Heidelberg University’s self-concept to further develop outstanding individual disciplines, to strengthen interdisciplinary cooperation, and to carry research results over into society. With a research-oriented course of study in more than 180 programmes, its nearly 30,000 students can choose from a virtually singular array of subject combinations and individual qualification pathways.

Being “The Research University in the Helmholtz Association”, KIT creates and imparts knowledge for the society and the environment. It is the objective to make significant contributions to the global challenges in the fields of energy, mobility, and information. For this, about 9,800 employees cooperate in a broad range of disciplines in natural sciences, engineering sciences, economics, and the humanities and social sciences. KIT prepares its 22,300 students for responsible tasks in society, industry, and science by offering research-based study programs. Innovation efforts at KIT build a bridge between important scientific findings and their application for the benefit of society, economic prosperity, and the preservation of our natural basis of life. KIT is one of the German universities of excellence.

Journal: Nature Photonics
DOI: 10.1038/s41566-022-01081-0
Article Title: Light-sheet three-dimensional microprinting via two-colour two-step absorption
Article Publication Date: 13-Oct-2022
