Quantum light source goes fully on-chip

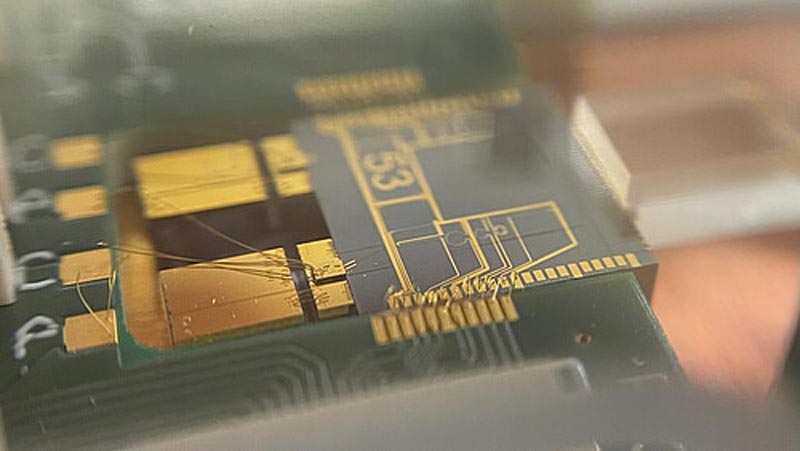

The whole quantum light source fits on a chip smaller than a one-euro coin. The researchers reduced the size of the light source by a factor of more than 1,000 by using a novel "hybrid technology" that combines a laser made of indium phosphide and a filter made of silicon nitride on a single chip. The new light source is efficient and stable and can find applications to drive quantum computers or the quantum internet.
(c) IOP

… bringing scalability to the quantum cloud.

The new development is scalable and suitable for use in photonic quantum computers.

An international team of researchers from Leibniz University Hannover (Germany), the University of Twente (Netherlands), and the start-up company QuiX Quantum has presented an entangled quantum light source fully integrated for the first time on a chip. “Our breakthrough allowed us to shrink the source size by a factor of more than 1000, allowing reproducibility, stability over a longer time, scaling, and potentially mass-production. All these characteristics are required for real-world applications such as quantum processors,” says Prof. Dr. Michael Kues, head of the Institute of Photonics, and board member of the Cluster of Excellence PhoenixD at Leibniz University Hannover.

They developed the new integrated quantum light source (from left): Prof. Dr Michael Kues, head of the Institute of Photonics and board member of the Cluster of Excellence PhoenixD at Leibniz University Hannover, with doctoral student Hatam Mahmudlu and Humboldt fellow Dr. Raktim Haldar.
©Sonja Smalian/PhoenixD

Quantum bits (qubits) are the basic building blocks of quantum computers and the quantum internet. Quantum light sources generate light quanta (photons) that can be used as quantum bits. On-chip photonics has become a leading platform for processing optical quantum states as it is compact, robust, and allows to accommodate and arrange many elements on a single chip.  Here, light is directed on the chip through extremely compact structures, which are used to build photonic quantum computing systems. These are already accessible today through the cloud. Scalably implemented, they could solve tasks that are inaccessible to conventional computers due to their limited computing capacities. This superiority is referred to as quantum advantage.

“Until now, quantum light sources required external, off-chip and bulky laser systems, which limited their use in the field. However, we overcome these challenges through a novel chip design and by exploiting different integrated platforms,” says Hatam Mahmudlu, a Ph.D. student in Kues’ team. Their new development, an electrically-excited, laser-integrated photonic quantum light source, fits entirely on a chip and can emit frequency-entangled qubit states.

“Qubits are very susceptible to noise. The chip must be driven by the laser field, completely free from noise, requiring an on-chip filter. Previously, it was a major challenge to integrate laser, filter, and a cavity on the same chip as there was no unique material that was efficient to build these different components,” says Dr. Raktim Haldar, a Humboldt fellow in Kues’ group. The key was the ‘hybrid technology’ that sticks the laser made of indium phosphide, a filter, and a cavity made of silicon nitride and brings them together into a single chip. On the chip, in a spontaneous nonlinear process, two photons are created from a laser field. Each photon spans a range of colours simultaneously, which is called ‘superposition’, and the colours of both photons are correlated, i.e., the photons are entangled and can store quantum information. “We achieve remarkable efficiencies and state qualities required for application in quantum computers or the quantum internet,” says Kues.

“Now we can integrate the laser with other components on a chip so that the whole quantum source is smaller than a one-euro coin. Our tiny device could be considered a step towards quantum advantage on a chip with photons. Unlike Google, which currently uses super-cold qubits in cryogenic systems, the quantum advantage could be achieved with such photonic systems on a chip even at room temperature,” says Haldar. The scientists also expect their discovery to help lower the production costs of applications. “We can imagine that our quantum light source will soon be a fundamental component of programmable photonic quantum processors,” says Kues. The results of the study were published in the journal Nature Photonics.

Prof. Dr. Michael Kues is head of the Institute of Photonics and a board member of the Cluster of Excellence PhoenixD: Photonics, Optics, and Engineering – Innovation across Disciplines at Leibniz University Hannover, Germany. The PhoenixD research cluster comprises around 120 scientists working on novel integrated optics. The German Research Foundation (DFG) funds PhoenixD with about 52 million euros from 2019 to 2025. Dr. Raktim Haldar is an Alexander von Humboldt Research Fellow at the Institute of Photonics, and Hatam Mahmudlu is a doctoral student in Kues’ team. The research was funded by the Federal Ministry of Education and Research (BMBF) and the European Research Council (ERC).



Original article
Hatam Mahmudlu, Robert Johanning, Albert van Rees, Anahita Khodadad Kashi, Jörn P. Epping, Raktim Haldar, Klaus-J. Boller, and Michael Kues
Fully on-chip photonic turnkey quantum source for entangled qubit/qudit state generation
Nature Photonics, (2023)
https://doi.org/10.1038/s41566-023-01193-1



Note to Editors:
For further information, please contact Prof. Dr. Michael Kues
(phone: +49 511 762 3539; email: michael.kues@iop.uni-hannover.de)

and visit www.iop.uni-hannover.de and www.phoenixd.uni-hannover.de.

https://www.uni-hannover.de/en/universitaet/aktuelles/online-aktuell/details/news/erste-vollstaendig-integrierte-quantenlichtquelle-in-chipgroesse-fuer-die-quanten-cloud
