Supporting structures of wind turbines contribute to wind farm blockage effect

13.12.2019

Updated theoretical model for wind farm aerodynamics accounts for turbine towers as a source for wind resistance in offshore farms.

Offshore wind power generation has become an increasingly promising source of renewable energy. Much about the aerodynamic effects of larger wind farms, however, remains poorly understood.

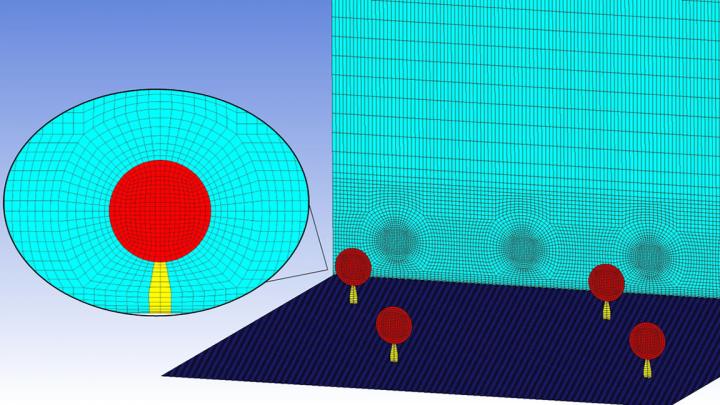

Using a two-scale coupled momentum balance method, researchers theoretically and computationally reconstructed conditions that large wind farms might face in the future, including the dampening effect that comes with spacing turbines close to one another. Cross-sectional mesh for the rotor disc (red), tower (yellow) and surrounding area (light blue)

Credit: Lun Ma

Usage Restrictions: Journalists may use this image only with appropriate credit.

New work in this week's Journal of Renewable and Sustainably Energy, from AIP Publishing, looks to provide more insight in how the structures necessary for wind farms affect air flow.

Scientists from Cranfield University and the University of Oxford present a theoretical model for estimating the aerodynamic effects of wind turbine towers on the performance of wind farms.

Using what is called a two-scale coupled momentum balance method, the group was able to theoretically and computationally reconstruct conditions that large wind farms might face in the future, including the dampening effect that comes with spacing turbines close to one another.

A key feature of the paper, said author Lun Ma, is that this most recent update to their model looks beyond a wind turbine's rotor.

"In this paper, we have newly taken into account the influence of wind turbine towers that act as support structures, which was ignored in the original two-scale momentum model," Ma said. "Therefore, essentially, the new model helps us understand the potential impact of wind turbine support structures on the wind farm blockage effect."

Even expansive offshore wind farms face a blockage effect, in which wind slows down as it approaches turbines, as well as a wake effect, in which turbines slow wind down as it passes by them.

Precisely predicting such features of a wind farm before constructing it, however, remains a major challenge for the industry.

To get at this question, the researchers turned to two-scale momentum modeling that simulates how the efficiencies of individual wind turbines decrease as more are spaced closely together within a wind farm when considered in an ideal, infinitely large wind farm.

"This efficiency reduction predicted by the two-scale momentum model is closely related to the wind farm blockage effect," Ma said. "However, the original two-scale momentum model was a highly simplified model and needed further improvements for practical applications."

The group combined the momentum balance equation with another approach, called actuator disc theory, which let them include other factors, such as the impact of turbine support structures. The approach allowed them to begin considering more practical scenarios, like wind farms that are a finite size.

They then conducted simulations using computational fluid dynamics to verify that such structures contribute to the blockage effect, particularly through the drag on the wind that they produce.

Ma said the group will look to better understand how the blockage effect changes with weather conditions.

###

The article, "Prediction of the impact of support structures on the aerodynamic performance of large wind farms," is authored by Lun Ma, Takafumi Nishino and Antonios F. Antoniadis. The article appeared in the Journal of Renewable and Sustainable Energy on Dec. 10, 2019 (DOI: 10.1063/1.5120602) and can be accessed at https://aip.scitation.org/doi/10.1063/1.5120602.

ABOUT THE JOURNAL

Journal of Renewable and Sustainable Energy is an interdisciplinary journal that publishes across all areas of renewable and sustainable energy relevant to the physical science and engineering communities. Topics covered include solar, wind, biofuels and more, as well as renewable energy integration, energy meteorology and climatology, and renewable resourcing and forecasting. See https://aip.scitation.org/journal/rse.

Media Contact

Larry Frum
media@aip.org
301-209-3090

http://www.aip.org

Larry Frum | EurekAlert!
Further information:
http://dx.doi.org/10.1063/1.5120602
