Second generation wired mobile panels for automation

25.11.2014

SPS IPC Drives 2014, Hall 11

  • New Simatic HMI Mobile Panels with enhanced performance, flexibility, convenience and quality
  • Brilliant seven or nine inch widescreen display with 40 percent greater area
  • Novel emergency stop button for safe automation
  • Compact connection box for small machines with a small footprint

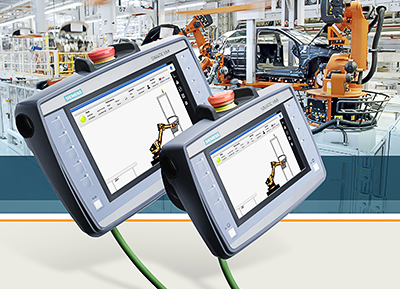

The new generation of mobile operation and monitoring panels from Siemens offers improvements in performance, flexibility, convenience and quality as compared with the previous range. Second-generation wired Simatic HMI Mobile Panels feature a brilliant seven or nine inch 16 million color widescreen display with a 16:9 aspect ratio capable of presenting even highly complex and detailed images of processes and plant clearly.

Other highlights include the unique illuminated emergency stop button, the flexible options for integration into safety applications and a compact connection box that can be mounted directly on the cabinet. The new IP65 operator panels can be used across a wide range of temperatures (from 0 to 45°C), are dust-tight and resistant to chemical action and incorporate splashwater protection. The panels, which offer combined key and touch operation, are integrated into the automation solution via Profinet and configured using the Simatic WinCC engineering tool in the TIA Portal and a novel Style Editor.

The second-generation Simatic HMI Mobile Panels feature a robust industrial design capable of withstanding falls from a height of up to 1.2 meters and offer all of the functionality and performance of the Simatic HMI Comfort Panels. It is possible to configure operating screens for both static and mobile applications and then add mobile specifics, for example. Some 40 percent larger in area, the widescreen-format display produces a needle-sharp, bright and detailed image. It is fully dimmable too, meaning that it can be adapted easily to different environments.

Models that include a stop/emergency shutdown button include a novel button illumination feature that becomes active only when the mobile operator panel is connected to a safety circuit. Now users need just the one panel version for automation with straightforward stop and safe emergency shutdown functions.

The new compact connection box takes up only a third of the space of its predecessor and can be mounted directly on the cabinet, which is particularly advantageous for small machines with a small footprint. The connection box is simply bolted onto the outside of the cabinet door and then fully wired up from the inside. Robust connecting cables from two to 25 meters in length ensure the operator always has adequate freedom to move around. The new mobile panels also include a maintenance-free energy storage system that keeps them operational for five minutes with no power supply in case the operator needs to move between connection boxes, for example.

Ease of use has been improved as compared with previous models too. For example the three-stage acknowledgment button on the panel handle now has two clear tactile feedback points.

For further information see www.siemens.com/mobile-panels


Siemens AG (Berlin and Munich) is a global technology powerhouse that has stood for engineering excellence, innovation, quality, reliability and internationality for more than 165 years. The company is active in more than 200 countries, focusing on the areas of electrification, automation and digitalization. One of the world's largest producers of energy-efficient, resource-saving technologies, Siemens is No. 1 in offshore wind turbine construction, a leading supplier of combined cycle turbines for power generation, a major provider of power transmission solutions and a pioneer in infrastructure solutions as well as automation, drive and software solutions for industry. The company is also a leading provider of medical imaging equipment – such as computed tomography and magnetic resonance imaging systems – and a leader in laboratory diagnostics as well as clinical IT. In fiscal 2014, which ended on September 30, 2014, Siemens generated revenue from continuing operations of €71.9 billion and net income of €5.5 billion. At the end of September 2014, the company had around 357,000 employees worldwide.

Further information is available on the Internet at www.siemens.com


Reference Number: PR2014110054DFEN


Contact


Mr. Gerhard Stauss
Digital Factory Division


Siemens AG

Gleiwitzer Str. 555

90475 Nuremberg

Germany

Tel: +49 (911) 895-7945

gerhard.stauss​@siemens.com
