3D Sonar Technology Made in Germany - High-resolution 3D imaging on short distances


The technology of sonar is used for many years in the field of seafloor mapping, in the fishery industry or for the search for sunken objects. By the help of new 3D sonar systems of the Fraunhofer Institute for Biomedical Engineering IBMT, these tasks can be accomplished more efficiently and precisely. The Business Unit Sonar concentrates research and development activities in the field of acoustic underwater measurements. One focus is on the high-resolution volumetric sonar imaging at distances up to 25 m.

The Fraunhofer IBMT exhibits at this year's OCEANS conference in Aberdeen from June 19-22, 2017 (Booth No. 4).

The technology of sonar - the measurement of structures under water with sound signals - is used for many years in the field of seafloor mapping, in the fishery industry or for the search for sunken objects. The sonar systems used for these tasks are usually designed for long measurement distances and therefore provide a rather low spatial resolution.

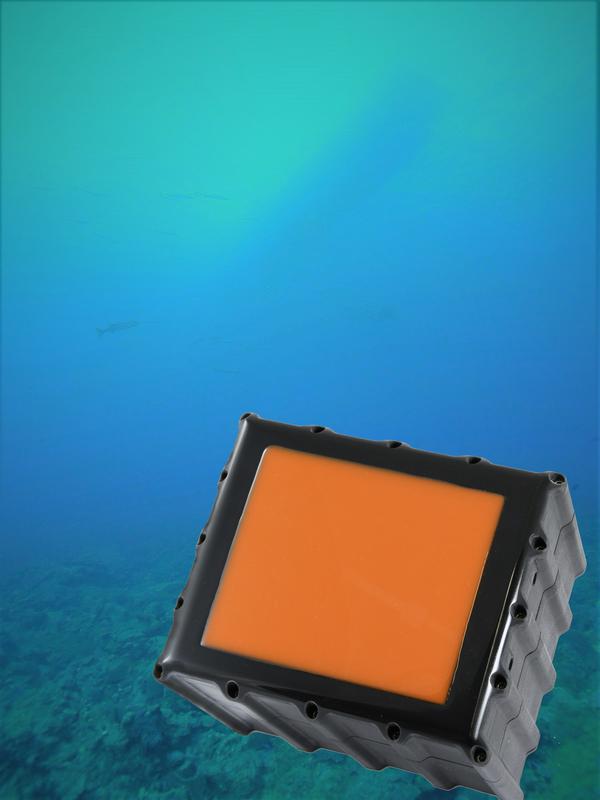

Real-time 3D sonar camera

Fraunhofer IBMT

3D reconstruction of a measurement object

Fraunhofer IBMT

Many applications under water demand a high-resolution visualization of the surrounding environment on short distances. Optical video cameras are often used for this purpose. However, these systems are often inapplicable in turbid waters leading to the abort of operations in some cases. By the help of new 3D sonar systems, these tasks can be accomplished more efficiently and precisely.

The Business Unit Sonar of the Main Department of Ultrasound at the Fraunhofer Institute for Biomedical Engineering IBMT in Sulzbach (Germany) concentrates the previous and the future research and development activities in the field of acoustic underwater measurements.

One focus of the recent research and development is on the high-resolution volumetric sonar imaging at distances up to 25 m. High-resolution in this context means the imaging of structures in the range of some centimeters at distances of few meters. At the moment, three different imaging sonar systems are available as demonstrators which are used for labor and field measurements on various objects and structures.

One of these systems, a multibeam echosounder (MBES), generates a sound fan, which is moved along the measurement object. While doing so, the position of the sonar antenna is tracked continuously via GPS so that the single image slices can be subsequently merged correctly to form an accurate representation of the measured structure. The system is suitable for all kinds of measurements on stationary structures from distances up to 15 m.

Real-time 3D imaging

If dynamic processes are supposed to be visualized, a volumetric imaging in real-time is necessary. For this purpose, two additional sonar systems have been developed. Due to their operational mode, these systems provide a three-dimensional visualization of their environment from a fixed position. And this with the same high spatial resolution as the multibeam echosounder.

One of these systems is constructed in a pressure-resistant version, so that even a deep-sea operation up to 600 bar can be performed. Additionally, a miniaturization of the systems is in progress.

Besides the 3D imaging systems, the Fraunhofer IBMT is developing other sonar systems like a sediment penetrating sub-bottom-profiler for the measurement of sedimentary layers in the seafloor with centimeter precision.

The Fraunhofer IBMT presents the whole range of its sonar technologies at this year's OCEANS conference in Aberdeen from 19th to 22nd of June (Booth No. 4). Here, interested industrial companies as well as research groups can inform about the competences and services of the Business Unit Sonar.


Dipl.-Ing. Michael Ehrhardt
Business Unit Sonar
Fraunhofer-Institute for Biomedical Engineering IBMT
Joseph-von-Fraunhofer-Weg 1
66280 Sulzbach
Fon: +49 6897 / 9071 330
Fax: +49 6897 / 9071 302

Weitere Informationen:

Dipl.-Phys. Annette Maurer | Fraunhofer-Institut für Biomedizinische Technik IBMT
