Scientists at Fraunhofer IISB have developed a novel packaging concept and technologies by embedding power semiconductor devices into ceramic circuit carriers. Their design offers high temperature stability, operation at high voltages, and hermetic sealing to provide maximum lifetime in harsh environments. This helps to fully exploit the great advantages of wide-bandgap semiconductors (WBG). Power modules based on this new approach are presented by Fraunhofer IISB at this year’s PCIM Europe exhibition in May 2019 in Nuremberg.
Ongoing miniaturization, 3D integration, and extreme environmental conditions impose major challenges to future power devices, modules, and systems, which are expected to provide excellent performance, high reliability, and long lifetime. Low cost is a key, enabled by high temperature.

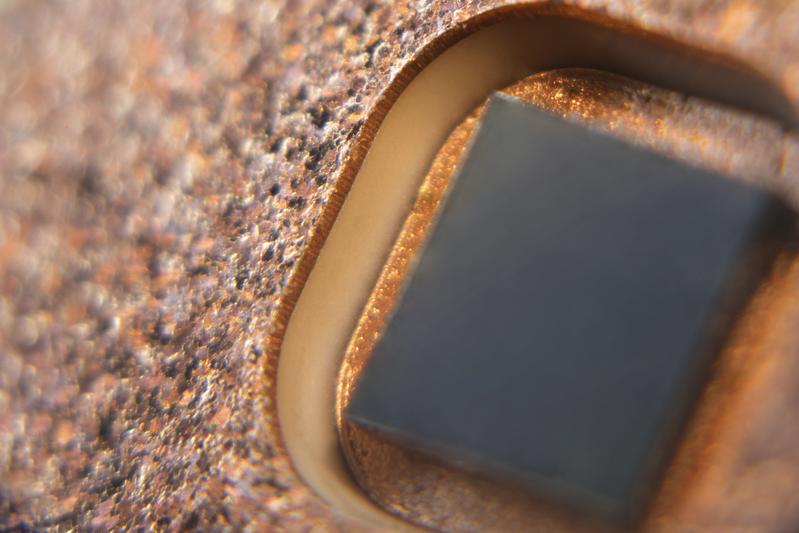

Close-up view of a wide-bandgap device embedded by the Ceramic Embedding technology.
This implies small chip size and low cooling effort. In this respect, the applicability of established packaging technologies, e.g., based on PCBs (Printed Circuit Boards), is limited as they do not afford sufficient thermal stability or current carrying capability.
As a remedy, a novel packaging concept was developed at Fraunhofer IISB in Erlangen, which is based on the embedding of power semiconductors in ceramic circuit carriers.
This prepares the ground for an extensive and more economical use of wide-bandgap semiconductors such as SiC (silicon carbide). SiC devices offer a vast potential for the growing market of power electronics.
They allow the switching of very high currents and voltages in compact, miniaturized systems and thus are a key enabler for the development of highly efficient and intelligent solutions for mobility, industrial applications, and energy technology. With the new approach for packaging and circuit carriers, the existing physical constraints, such as limited operation temperature or undesired parasitic inductances, can be enhanced.
With the new technology – called Ceramic Embedding – the power devices are placed inside a special prepared direct bonded copper (DBC) substrate by suitable die bonding techniques such as soldering or silver sintering. Subsequently, all gaps are filled with a high-temperature potting material. The resulting prepackage is forming an easy-to-use power electronics building block.
The concept allows a high copper layer thickness, which paves the way for a considerable current carrying capacity. A big benefit is the high electrical and thermal contact area. The semiconductor’s top and bottom side have ideal interconnections offering the full performance of the tiny WBG devices.
Different types of ceramic material are applicable such as alumina, aluminum nitride or silicon nitride. The choice depends on the individual requirements for optimizing the thermal management, mechanical properties, and cost.
For generating the cavities and trenches, subtractive manufacturing methods are used. The vias for the electrical contacts are drilled with a laser process. Then they are filled with silver sintering material or similar conductive materials. The vias allow the realization of multi-layer ceramic substrate stacks, which are of special advantage for low-inductance commutation cells.
Fraunhofer IISB is continuing its intensive research on Ceramic Embedding and the necessary manufacturing process technologies to exploit the full potential of wide-bandgap semiconductor devices in power electronics. The target is to bring the promising packaging technology to industrial production.
Power modules based on the Ceramic Embedding technology can be discovered on May 7-9, 2019, at the PCIM Europe exhibition in Nuremberg, booth no. 6-438.
