A team led by the University of California San Diego has developed a chip that can detect a type of genetic mutation known as a single nucleotide polymorphism (SNP) and send the results in real time to a smartphone, computer, or other electronic device. The chip is at least 1,000 times more sensitive at detecting an SNP than current technology.
The advance, published July 9 in Advanced Materials, could lead to cheaper, faster and portable biosensors for early detection of genetic markers for diseases such as cancer.

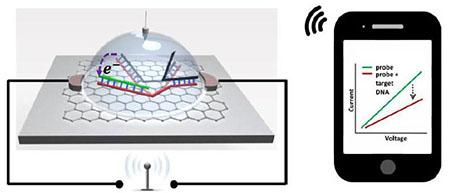

Illustration of graphene-based SNP detection chip wirelessly transmitting signal to a smartphone.
Credit: Lal et al.
An SNP is the change in a single nucleotide base (A, C, G or T) in the DNA sequence. It is the most common type of genetic mutation. While most SNPs have no discernible effect on health, some are associated with increased risk of developing pathological conditions such as cancer, diabetes, heart disease, neurodegenerative disorders, autoimmune and inflammatory diseases.
Traditional SNP detection methods have several limitations: they have relatively poor sensitivity and specificity; they require amplification to get multiple copies for detection; they require the use of bulky instruments; and they cannot work wirelessly.
The new DNA biosensor developed by the UC San Diego-led team is a wireless chip that's smaller than a fingernail and can detect an SNP that's present in picomolar concentrations in solution.
"Miniaturized chip-based electrical detection of DNA could enable in-field and on-demand detection of specific DNA sequences and polymorphisms for timely diagnosis or prognosis of pending health crises, including viral and bacterial infection-based epidemics," said Ratnesh Lal, professor of bioengineering, mechanical engineering and materials science at the UC San Diego Jacobs School of Engineering.
The chip essentially captures a strand of DNA containing a specific SNP mutation and then produces an electrical signal that is sent wirelessly to a mobile device. It consists of a graphene field effect transistor with a specially engineered piece of double stranded DNA attached to the surface.
This piece of DNA is bent near the middle and shaped like a pair of tweezers. One side of these so-called "DNA-tweezers" codes for a specific SNP. Whenever a DNA strand with that SNP approaches, it binds to that side of the DNA-tweezers, opening them up and creating a change in electrical current that is detected by the graphene field effect transistor.
The project is led by Lal and involves teams at the Institute of Engineering in Medicine at UC San Diego, Chinese Academy of Sciences in China, University of Pennsylvania, Max Planck Institute for Biophysical Chemistry in Germany, and Inner Mongolia Agricultural University in China.
DNA strand displacement
What drives this technology is a molecular process called DNA strand displacement--when a DNA double helix exchanges one of its strands for a new complementary strand. In this case, the DNA-tweezers swap one their strands for one with a particular SNP.
This is possible due to the particular way the DNA-tweezers are engineered. One of the strands is a "normal" strand that is attached to the graphene transistor and contains the complementary sequence for a specific SNP. The other is a "weak" strand in which some of the nucleotides are replaced with a different molecule to weaken its bonds to the normal strand. A strand containing the SNP is able to bind more strongly to the normal strand and displace the weak strand. This leaves the DNA-tweezers with a net electric charge that can be easily detected by the graphene transistor.
New and improved SNP detection chip
This work builds upon the first label- and amplification-free electronic SNP detection chip that Lal's team previously developed in collaboration with Gennadi Glinksy, a research scientist at the UC San Diego Institute of Engineering in Medicine, and other UC San Diego researchers. The new chip has added wireless capability and is at least 1,000 times more sensitive than its predecessor.
What makes the new chip so sensitive is the design of the DNA-tweezers. When the SNP-containing strand binds, it opens up the DNA-tweezers, changing their geometry so that they become almost parallel to the graphene surface. This brings the net electric charge of the DNA close to the graphene surface, giving a larger signal. In contrast, the DNA probe built into the previous chip has a structure that cannot be brought closer to the graphene surface, so it generates a weaker signal upon binding an SNP-containing strand.
Next steps include designing array chips to detect up to hundreds of thousands of SNPs in a single test. Future studies will involve testing the chip on blood and other bodily fluid samples taken from animals or humans.
Paper title: "DNA Nano-tweezers and Graphene Transistor Enable Label-free Genotyping." Co-authors include Michael T. Hwang*, Deependra Kumar Ban*, Zi Chao Shiah, Joon Lee, Abhijith G. Karkisaval and Gennadi Glinksy at UC San Diego (Michael T. Hwang is now at University of Illinois at Urbana-Champaign); Zejun Wang* and Chunhai Fan at Chinese Academy of Sciences, Jinglei Ping* and A. T. Charlie Johnson at University of Pennsylvania, Leif Antonshmidt at Max Planck Institute for Biophysical Chemistry and Yushuang Liu at Inner Mongolia Agricultural University.
*These authors contributed equally to this work.
This work is supported by grants from the National Institute on Drug Abuse (R01DA024871), the National Institute on Aging (4R01AG028709) and departmental development funds from the Department of Mechanical and Aerospace Engineering at UC San Diego. J. P. and A. T. C. J. acknowledge support from the National Institute of Environmental Health Sciences (1P30 ES013508). C. F. acknowledges support from the National Key R&D Program of China (2016YFA0201200 and 2016YFA0400900).
