Microjet generator for highly viscous fluids

13.02.2018

Simple device for microjets of fluids similar even to honey and with non-Newtonian properties

Liquid jet is utilized in various key technologies such as inkjet printing. However, most methods can eject only low viscosity liquid, which is almost the same viscosity of water.

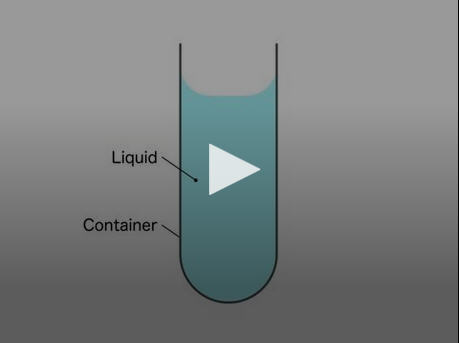

Video: This is a liquid jet generator with highly viscous fluids. The device consists simple structure and can eject highly viscous liquid and nail polish (viscous non-Newtonian liquid).

Credit: Tokyo University of Agriculture and Technology, Tagawa Yoshiyuki Lab

This limitation of the viscosity causes the blurring and dulling color of the ink. To solve these problems, the method of ejecting highly viscous liquid jet is required.

Researchers at Tokyo University of Agriculture and Technology have newly proposed a device of generating microjet with high viscosity, like a honey. To produce the viscous liquid jets, we use an impulsive force i.e. the liquid jet is induced by adding an impact applied at the bottom of a liquid-filled container.

Moreover our device relies on additional trick: the wettable thin tube is inserted into the liquid, where liquid level inside the tube is kept deeper than that outside the tube. We find that the liquid inside the tube is significantly accelerated thanks to this trick.

As a result, our device can eject a liquid jet with high viscousity, which is more than 1,000 times viscos than water and with non-Newtonian properties such as nail polish. We have also revealed the mechanism of our device via conducting experiments and numerical simulations.

Our device overcomes the existing problems such as the limitation of the viscosity and solidifies the base for the next generation manufacturing such as 3D manufacturing and biological printings.

###

This work was supported by JSPS KAKENHI Grant Numbers 26709007,17H01246,17J06711."

Media Contact

Yoshiyuki Tagawa
tagawayo@cc.tuat.ac.jp
81-423-887-407

http://www.tuat.ac.jp/en/

Yoshiyuki Tagawa | EurekAlert!
