Cascading use is also beneficial for wood

11.12.2017

Another ten years — that is approximately how long sustainable forestry will be able to satisfy the continuously growing demand for wood. In Germany and Europe, new concepts are therefore being discussed for more responsible and efficient industrial use of the renewable, but still limited wood resources. Researchers at the Technical University of Munich (TUM) are using data from a European research project to analyze the potential efficiency of multiple use between harvesting and combustion of wood.

Does the cascading use of wood really lead to increased resource efficiency? For example, if the raw wood is first used to make construction elements, then slats for a table, and finally chipped and turned into chipboard before being burned for energy in a power plant?

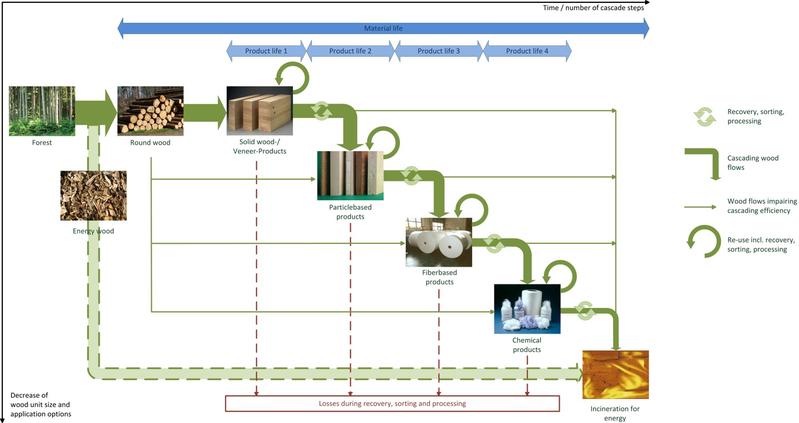

The illustration shows the concept of cascading the use of wood with its individual stages.

(Source: Höglmeier 2015)

To answer this question, Michael Risse and Professors Gabriele Weber-Blaschke and Klaus Richter from the Chair of Wood Science at TUM set out to find suitable assessment methods.

A cascading system composed of many suppliers, manufacturers, and users is complex and costly. The material flows within and between the cascade steps are numerous and interwoven. As a theory, the concept has been described for years and has also been scientifically proven to save fossil resources, reduce greenhouse gas emissions, and increase value creation.

But so far, a targeted examination of resource efficiency has not yet been performed. Since biologically generating wood differs fundamentally from producing synthetic raw materials, it is important to examine whether and to what extent cascading use of renewable raw materials pays off in terms of efficiency.

In order to account for the characteristic features of cascading use, wood researcher Michael Risse applied the holistic life cycle approach and analyzed the exergy of all materials used, the internal recycling processes, and the consumption of other primary resources, such as the forest land areas required. Exergy refers to the percentage of energy that can be converted into work.

Savings primarily at the start of the production chain

In two scenarios, the TUM researchers compared the path of one metric ton of scrap wood with the provision of the same functions using fresh wood. In the first scenario, the recovered wood was initially processed into sawn wood and then two subsequent times into chipboard in a cascading system. In the reference scenario, the same products were manufactured, but this time out of fresh wood.

The result: In cascading use, the wood is utilized significantly more efficiently at a rate of 46 percent, compared to single use at 21 percent. The biggest savings are achieved at the beginning of the production chain due to the reduced use of fresh wood, which in turn reduces the required forest land area. Cascading use remains more efficient during the further processing of the wood, but to a significantly lesser extent. In both scenarios, the production of chipboard consumes the most resources, particularly the process of drying and gluing.

Resource-efficient processing still in its infancy

In real-world industrial use, cascading use is still in its infancy, as the necessary logistics processes and adapted process technology are not yet available. Furthermore: “Energetic utilization still has priority over the material use of wood,” lamented Professor Klaus Richter, who holds the Chair. Almost half of the 60 million metric tons of forest timber harvested each year are used to generate energy, either directly or within industrial processes.

The German Renewable Energy Sources Act (EEG) still encourages such usage until 2019, e.g. by subsidizing the generation of heat from wood energy with feed-in tariffs or by granting investment subsidies for heating installations such as wood pellet or wood chip heating systems. This one-sided incentive was already criticized in the comprehensive climate protection report for agriculture and forestry conducted in 2016, to which employees of the Chair of Wood Science also contributed.

Today, only a third of the recovered wood generated in Germany is being converted into chipboard; according to Richter, approximately seven million metric tons end up being burned directly in order to generate heat and electricity in power plants. For the wood scientist, this is at least one step too few. He and his team of researchers advocate a more intensive material use of wood: “Over the mid-term, we need to utilize wood more efficiently, i.e. multiple times as a material, before we burn or turn it into pellets. Its material properties do not stand in the way of cascading use. However, the processing and use of wood needs to be adapted from a planning and conceptual standpoint so that multiple use becomes a reality.”

According to doctoral candidate Michael Risse, additional analyses in the context of cascading use are also essential: “For example, during the efficiency analysis, the scarcity of the individual primary natural resources should also be taken into account.” For one, his published study does not take into account what is called the ‘substitution effect’, which makes another weighty argument for cascading use: “The use of wood products helps to avoid greenhouse gas emissions that result during the production of non-wood products such as steel or concrete — and that applies equally for each additional cascading stage,” Professor Richter explained. “Furthermore, wood is the only material that stores carbon — throughout its entire life cycle.”

This way, the carbon bound during the growth of the tree is removed from the atmosphere and is only released again at the end of the cascade — which should last as long as possible. “However, theoretical analyses alone won’t cut it. We need action from policymakers and the industry,” Richter emphasized.

Publication:
Michael Risse, Gabriele Weber-Blaschke and Klaus Richter: Resource efficiency of multifunctional wood cascade chains using LCA and exergy analysis, exemplified by a case study for Germany, Resources, Conservation & Recycling 126, 141-152, 2017. DOI: http://dx.doi.org/10.1016/j.resconrec.2017.07.045

Contact:
Prof. Dr. Klaus Richter
Technical University of Munich
Chair of Wood Science
Phone: +49 89 2180 6421
richter@hfm.tum.de

www.hfm.tum.de

Weitere Informationen:

https://www.tum.de/nc/en/about-tum/news/press-releases/detail/article/34365/

Dr. Ulrich Marsch | Technische Universität München
