Artificial topological matter opens new research directions

06.04.2017

An international team of researchers have created a new structure that allows the tuning of topological properties in such a way as to turn on or off these unique behaviors. The structure could open up possibilities for new explorations into the properties of topological states of matter.

"This is an exciting new direction in topological matter research," said M. Zahid Hasan, professor of physics at Princeton University and an investigator at Lawrence Berkeley National Laboratory in California who led the study, which was published March 24th in the journal Science Advances. "We are engineering new topological states that do not occur naturally, opening up numerous exotic possibilities for controlling the behaviors of these materials."

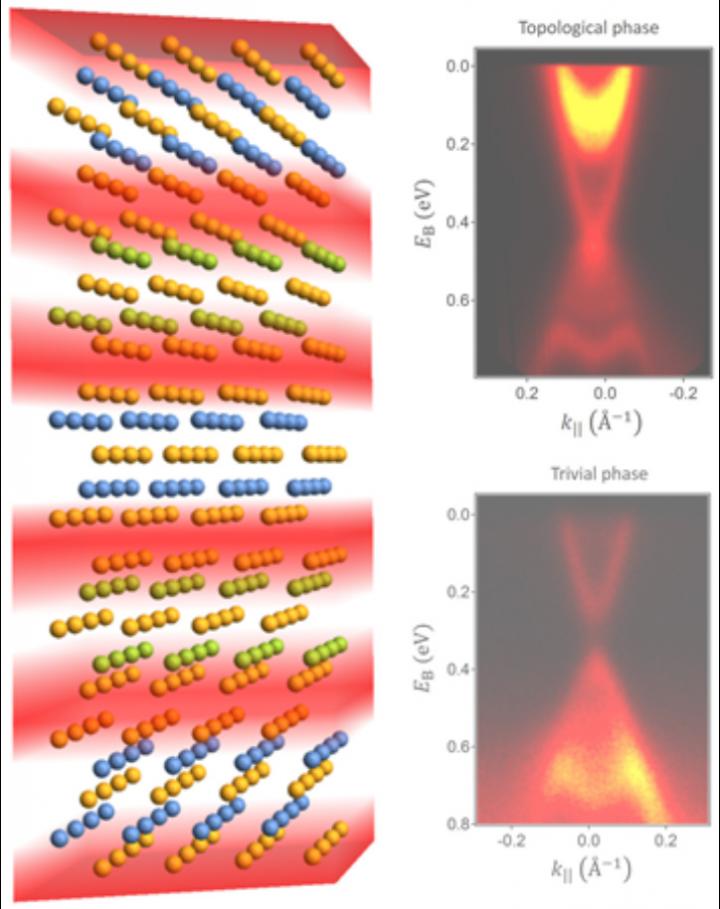

The heterostructure consists of two materials, a topological insulator (blue and orange atoms) and a trivial insulator (green and orange atoms). Each interface traps electrons (illustrated as quantum wavefunctions by the red clouds). In their work, the researchers made different heterostructure samples where they could control how the electrons tunnel from interface to interface in the stack, forming an emergent, tunable one-dimensional quantum lattice. The researchers discovered an emergent topological phase of matter, where there was an electron cloud at the end of the stack without a pairing partner, forming a topologically protected end state that is closely related to the famous Su-Schrieffer-Heeger theoretical

Image credit: I. Belopolski, Princeton University

The new structure consists of alternating layers of topological and normal, or trivial, insulators, an architecture that allows the researchers to turn on or off the flow of current through the structure. The ability to control the current suggests possibilities for circuits based on topological behaviors, but perhaps more importantly presents a new artificial crystal lattice structure for studying quantum behaviors.

Theories behind the topological properties of matter were the subject of the 2016 Nobel Prize in physics awarded to Princeton University's F. Duncan Haldane and two other scientists. One class of matter is topological insulators, which are insulators on the inside but allow current to flow without resistance on the surfaces.

In the new structure, interfaces between the layers create a one-dimensional lattice in which topological states can exist. The one-dimensional nature of the lattice can be thought of as if one were to cut into the material and remove a very thin slice, and then look at the thin edge of the slice. This one-dimensional lattice resembles a chain of artificial atoms. This behavior is emergent because it arises only when many layers are stacked together.

By changing the composition of the layers, the researchers can control the hopping of electron-like particles, called Dirac fermions, through the material. For example, by making the trivial-insulator layer relatively thick - still only about four nanometers - the Dirac fermions cannot travel through it, making the entire structure effectively a trivial insulator. However, if the trivial-insulator layer is thin - about one nanometer - the Dirac fermions can tunnel from one topological layer to the next.

To fashion the two materials, the Princeton team worked with researchers at Rutgers University led by Seongshik Oh, associate professor of physics, who in collaboration with Hasan and others showed in 2012 in work published in Physical Review Letters that adding indium to a topological insulator, bismuth selenide, caused it to become a trivial insulator. Prior to that bismuth selenide (Bi2Se3) was theoretically and experimentally identified as a topological insulator by Hasan's team which was published in Nature in 2009.

"We had shown that, depending on how much indium you add, the resulting material had this nice tunable property from trivial to topological insulator," Oh said, referring to the 2012 study.

Graduate students Ilya Belopolski of Princeton and Nikesh Koirala of Rutgers combined two state-of-the-art techniques with new instrumentation development and worked together on layering these two materials, bismuth selenide and indium bismuth selenide, to design the optimal structure. One of the challenges was getting the lattice structures of the two materials to match up so that the Dirac fermions can hop from one layer to the next. Belopolski and Suyang Xu worked with colleagues at Princeton University, Lawrence Berkeley National Laboratory and multiple institutions to use high resolution angle-resolved photoemission spectroscopy to optimize the behavior of the Dirac fermions based on a growth to measurement feedback loop.

Although no topologically similar states exist naturally, the researchers note that analogous behavior can be found in a chain of polyacetylene, which is a known model of one-dimensional topological behavior as described by the 1979 Su-Schrieffer-Heeger's theoretical model of an organic polymer.

The research presents a foray into making artificial topological materials, Hasan said. "In nature, whatever a material is, topological insulator or not, you are stuck with that," Hasan said. "Here we are tuning the system in a way that we can decide in which phase it should exist; we can design the topological behavior."

The ability to control the travel of light-like Dirac fermions could eventually lead future researchers to harness the resistance-less flow of current seen in topological materials. "These types of topologically tunable heterostructures are a step toward applications, making devices where topological effects can be utilized," Hasan said.

The Hasan group plans to further explore ways to tune the thickness and explore the topological states in connection to the quantum Hall effect, superconductivity, magnetism, and Majorana and Weyl fermion states of matter.

###

In addition to work done at Princeton and Rutgers, the research featured contributions from the following institutions: South University of Science and Technology of China; Swiss Light Source, Paul Scherrer Institute; National University of Singapore; University of Central Florida; Universität Würzburg; Diamond Light Source, Didcot, U.K.; and Synchrotron SOLEIL, Saint-Aubin, France.
