Graphene composite may keep wings ice-free

26.01.2016

Rice University develops conductive material to heat surfaces, simplify ice removal

A thin coating of graphene nanoribbons in epoxy developed at Rice University has proven effective at melting ice on a helicopter blade.

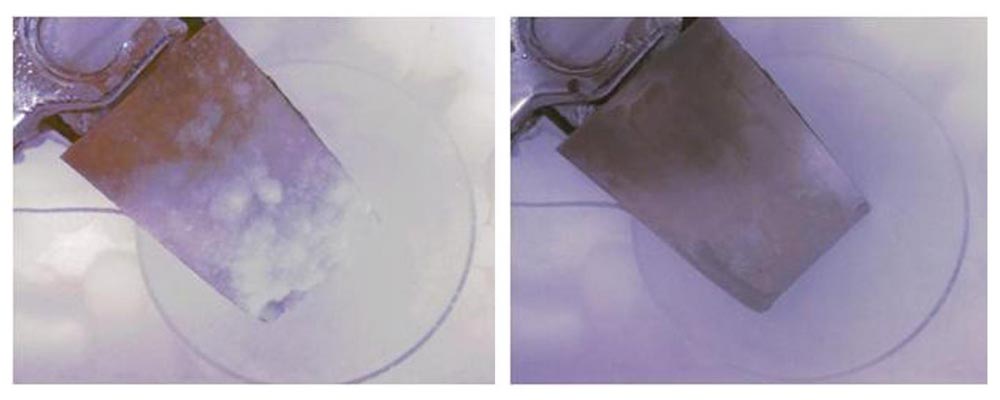

Rice University scientists embedded graphene nanoribbon-infused epoxy in a section of helicopter blade to test its ability to remove ice through Joule heating.

Credit: Tour Group/Rice University

The coating by the Rice lab of chemist James Tour may be an effective real-time de-icer for aircraft, wind turbines, transmission lines and other surfaces exposed to winter weather, according to a new paper in the American Chemical Society journal ACS Applied Materials and Interfaces.

In tests, the lab melted centimeter-thick ice from a static helicopter rotor blade in a minus-4-degree Fahrenheit environment. When a small voltage was applied, the coating delivered electrothermal heat - called Joule heating - to the surface, which melted the ice.

The nanoribbons produced commercially by unzipping nanotubes, a process also invented at Rice, are highly conductive. Rather than trying to produce large sheets of expensive graphene, the lab determined years ago that nanoribbons in composites would interconnect and conduct electricity across the material with much lower loadings than traditionally needed.

Previous experiments showed how the nanoribbons in films could be used to de-ice radar domes and even glass, since the films can be transparent to the eye.

"Applying this composite to wings could save time and money at airports where the glycol-based chemicals now used to de-ice aircraft are also an environmental concern," Tour said.

In Rice's lab tests, nanoribbons were no more than 5 percent of the composite. The researchers led by Rice graduate student Abdul-Rahman Raji spread a thin coat of the composite on a segment of rotor blade supplied by a helicopter manufacturer; they then replaced the thermally conductive nickel abrasion sleeve used as a leading edge on rotor blades. They were able to heat the composite to more than 200 degrees Fahrenheit.

For wings or blades in motion, the thin layer of water that forms first between the heated composite and the surface should be enough to loosen ice and allow it to fall off without having to melt completely, Tour said.

The lab reported that the composite remained robust in temperatures up to nearly 600 degrees Fahrenheit.

As a bonus, Tour said, the coating may also help protect aircraft from lightning strikes and provide an extra layer of electromagnetic shielding.

###

Co-authors of the paper are Rice undergraduates Tanvi Varadhachary and Kewang Nan, graduate student Tuo Wang, postdoctoral researchers Jian Lin and Yongsung Ji, alumni Yu Zhu of the University of Akron and Bostjan Genorio of the University of Ljubljana, Slovenia, and research scientist Carter Kittrell.

Tour is the T.T. and W.F. Chao Chair in Chemistry as well as a professor of computer science and of materials science and nanoengineering.

The Air Force Office of Scientific Research and Carson Helicopter supported the research.

Read the abstract at http://pubs.acs.org/doi/abs/10.1021/acsami.5b11131

This news release can be found online at http://news.rice.edu/2016/01/25/graphene-composite-may-keep-wings-ice-free/

Follow Rice News and Media Relations via Twitter @RiceUNews

Related Materials:

James M. Tour Group: http://www.jmtour.com

Wiess School of Natural Sciences: http://naturalsciences.rice.edu
